Storage Racking & Shelving Systems for Commercial, Industrial & Logistics Warehouse
Industrial & Commercial Grade HVLS Giant Ventilation Fans & Parts
All your Storage Equipment Consumables
& Parts
**Heavy Duty Specs, Multiple Sizes:**
- **Height:** 1.2m, 1.5m, 1.8m, 2.1m, 2.4m
- **Depth:** 0.3m, 0.45m, 0.6m, 0.75m, 0.9m
- **Length:** 1.2m, 1.5m, 1.8m, 2.1m, 2.4m
Quality 9mm thick steel, heavy-duty, supports up to 500kg UDL per level.
Powder-coated in blue and orange for rust resistance. Options for metal decking with support bar, or MDF/HDF board (9mm/12mm).

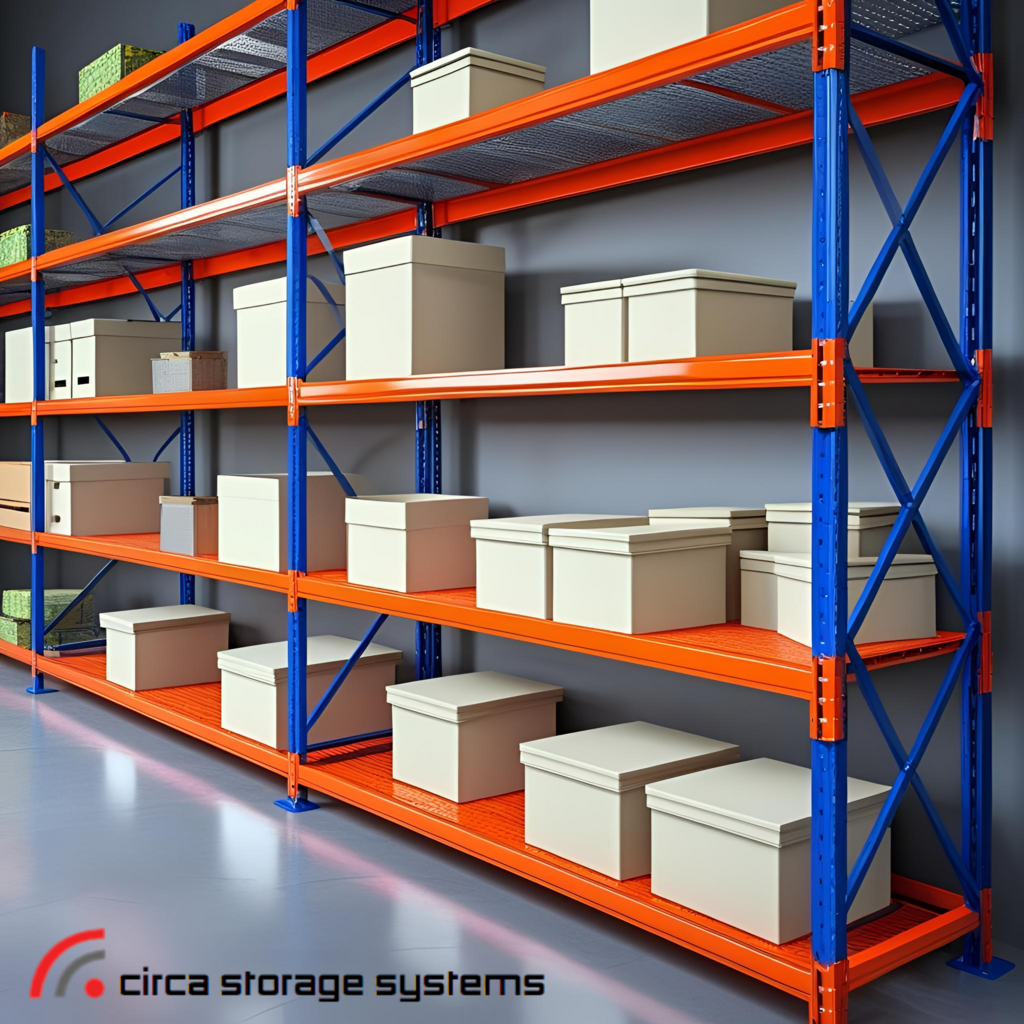

**Extra Heavy Duty Specifications - Multiple Sizes Available:**
- **Height Options:** 1.2m, 1.5m, 1.8m, 2.1m, 2.4m
- **Depth Options:** 0.3m, 0.45m, 0.6m, 0.75m, 0.9m
- **Length Options:** 1.2m, 1.5m, 1.8m, 2.1m, 2.4m
Constructed from high-quality, 9mm thick steel, offering heavy-duty performance with a uniform distributed load (UDL) capacity of up to 800kgs per level. Finished with a powder-coated blue and orange exterior for enhanced durability and rust resistance. Available with metal decking featuring a support bar, or MDF/HDF board options in 9mm or 12mm thickness.

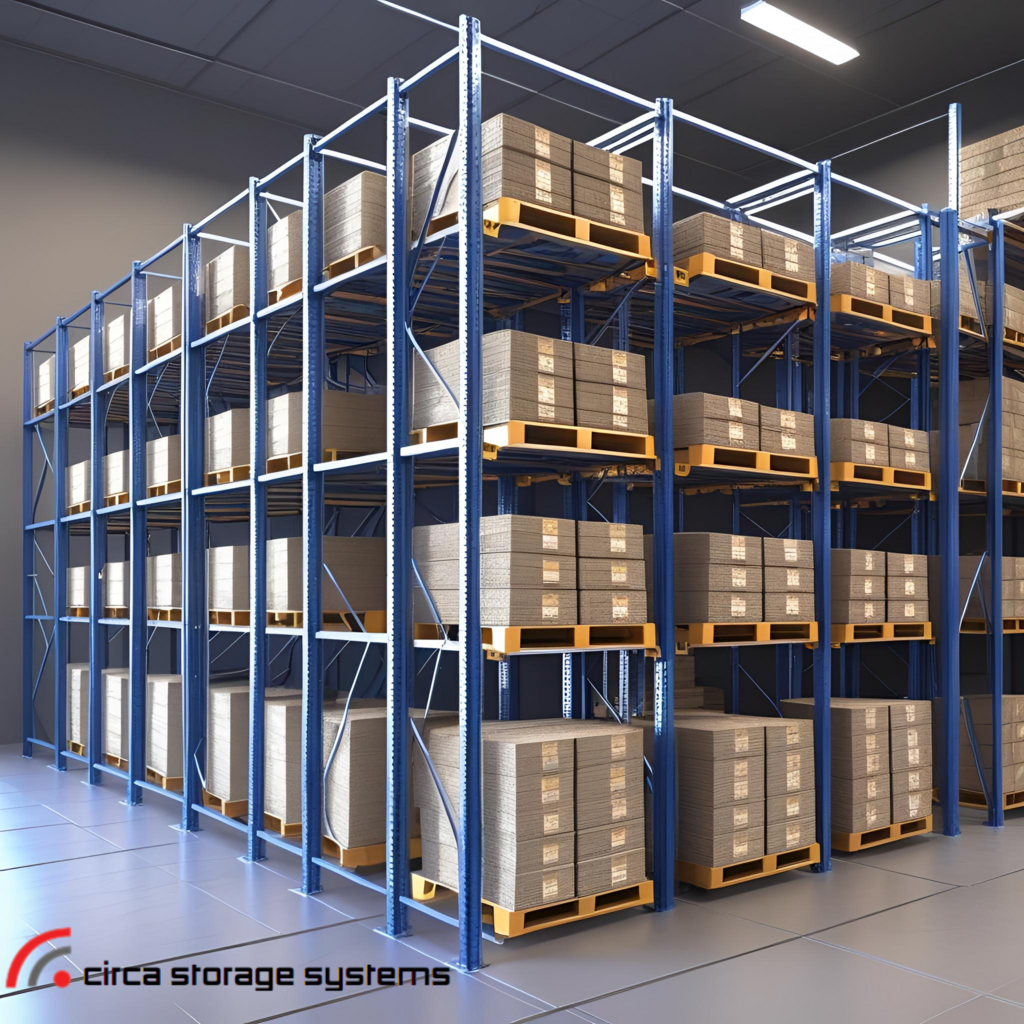

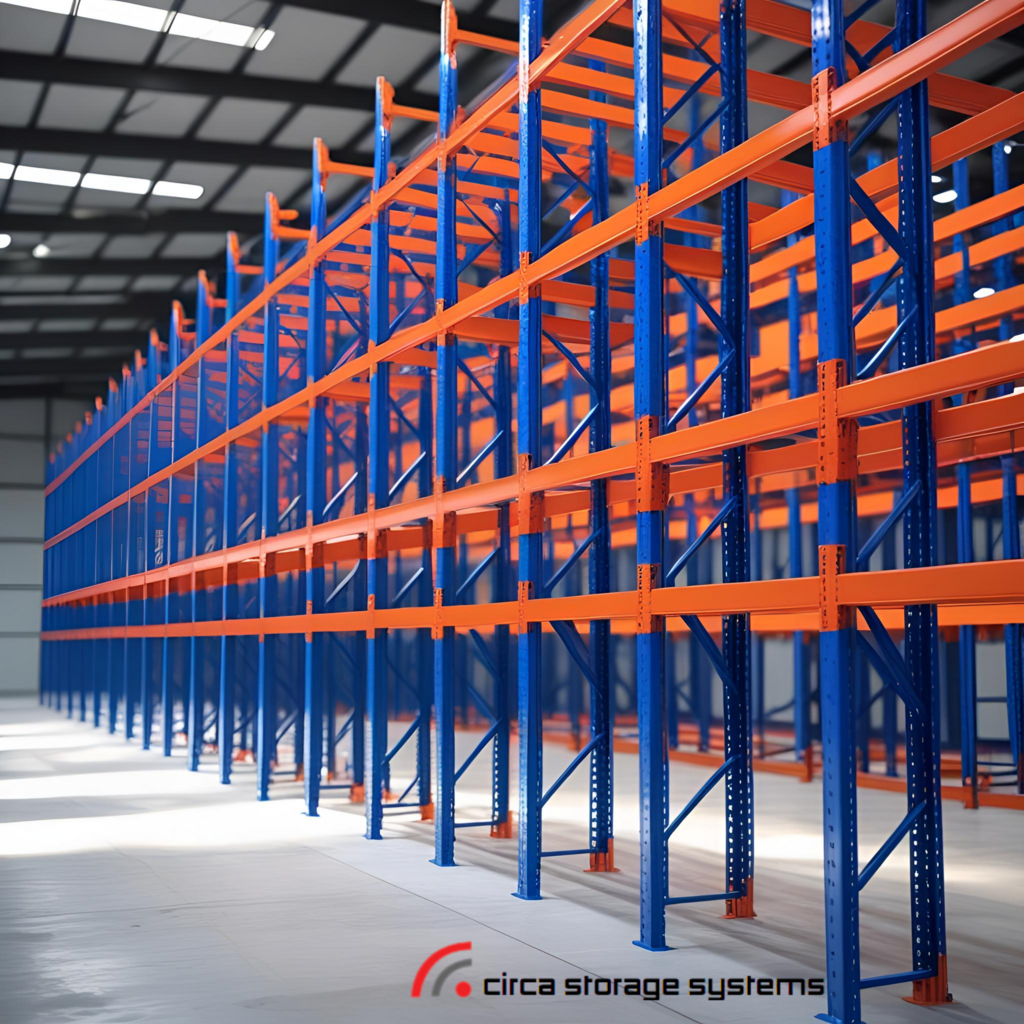

Heavy Duty Spec, Color Customizable
Frame height up to 12m, Beam Width 1.2m up to 4.2m, Depth 0.8-1.0m Frame. Average Weight Per Pallet is up to 1500Kgs per Pallet, Per Level is up to 3000Kgs.
Other types of pallet racking series, cantilever racking for furniture, tyre rack, multideep racks, satelite system, mezzanine multi tier system. Free consultation, free CAD design and quotation.

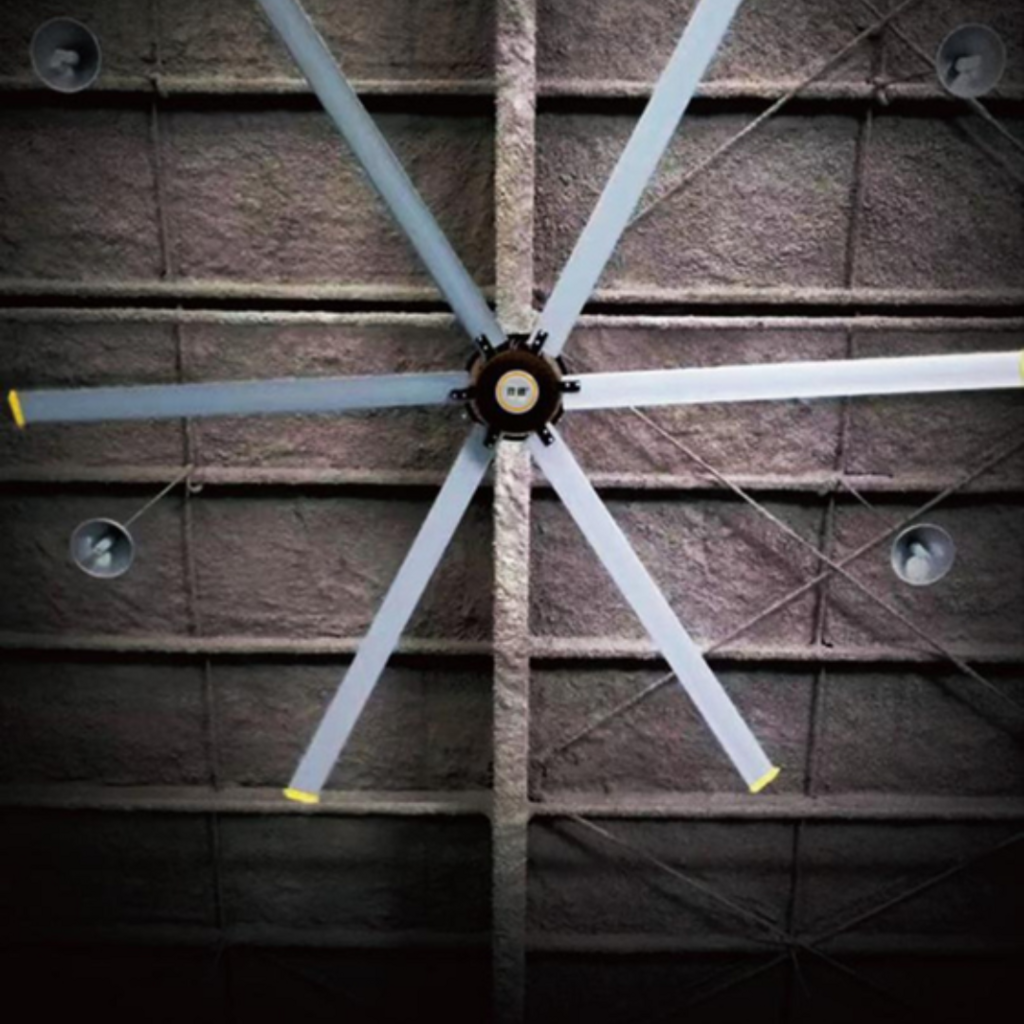

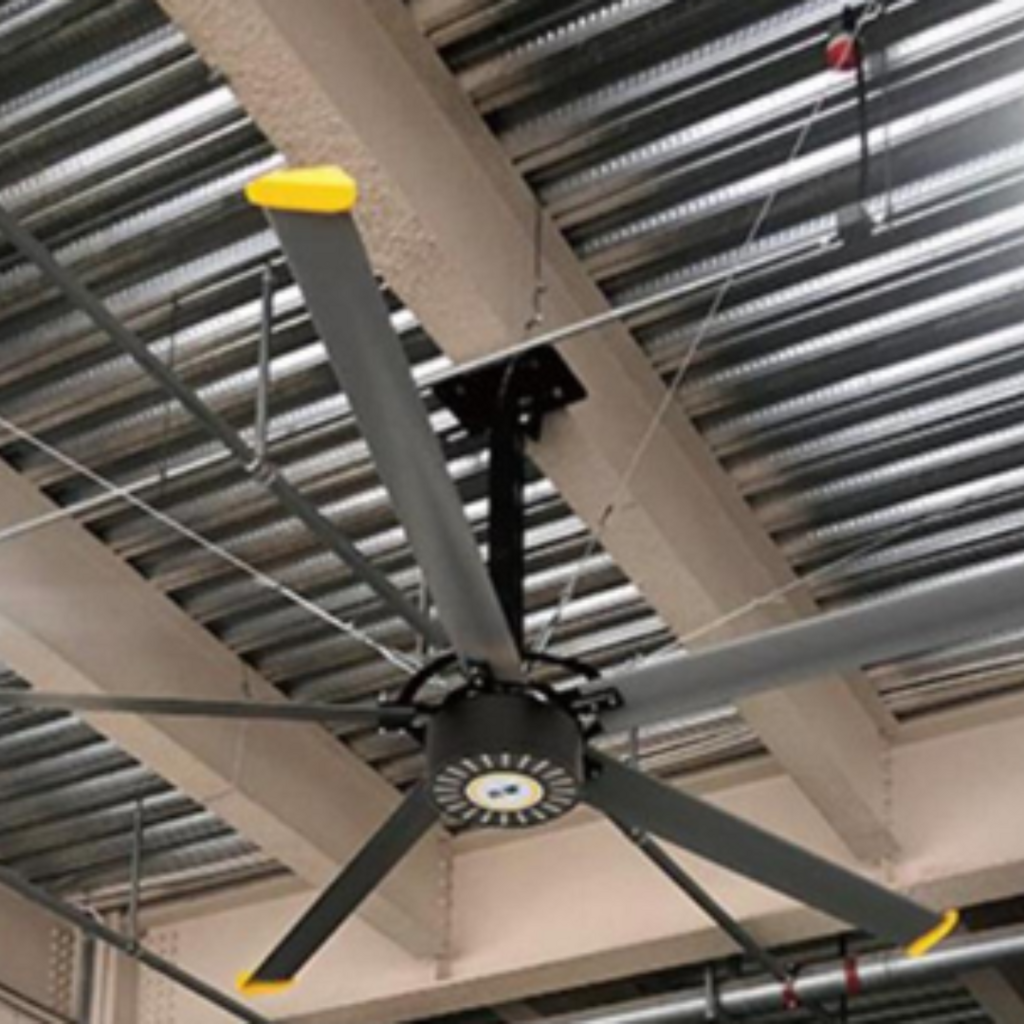

High efficiency fans for stadiums, open & closed spaces eliminating heat & maximising air flow. Ideal for any event, commercial area or factory warehouse usage. 220-420V single phase to 3 phase energy efficient inverter series, total 5 sizes from 3.6m until 14.8m width.
High efficiency fans for stadiums, open & closed spaces eliminating heat & maximising air flow. Ideal for any event, commercial area or factory warehouse usage. 220-240V energy efficient inverter series, total 5 sizes from 3.6m until 14.8m width.
| # | Model | Size | Air Volume | Area Sq.Ft. | Power | Max Speed | Fan Weight | Blade | Current |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CIRCA FX73 | 7.3 METRE | 16500 M3/MIN | 7000 SQ.FT | 1.5 KW | 10-60 RPM | 110 KG | 6 | 3.5A |
| 2 | CIRCA FX61 | 6.1 METRE | 14800 M3/MIN | 6000 SQ.FT | 1.3 KW | 10-65 RPM | 102 KG | 6 | 3.5A |
| 3 | CIRCA FX55 | 5.5 METRE | 14500 M3/MIN | 4500 SQ.FT | 0.75 KW | 10-70 RPM | 98 KG | 6 | 3.0A |
| 4 | CIRCA FX49 | 4.9 METRE | 14000 M3/MIN | 5000 SQ.FT | 0.75 KW | 10-70 RPM | 95 KG | 6 | 3.0A |
| 5 | CIRCA FX42 | 4.2 METRE | 13300 M3/MIN | 4000 SQ.FT | 0.4 KW | 10-75 RPM | 80 KG | 6 | 2.5A |
| 6 | CIRCA FX36 | 3.6 METRE | 10500 M3/MIN | 3600 SQ.FT | 0.4 KW | 10-80 RPM | 65 KG | 6 | 2.5A |
| 7 | CIRCA FX31 | 3.1 METRE | 8700 M3/MIN | 3000 SQ.FT | 0.4 KW | 10-110 RPM | 45 KG | 6 | 2.5A |
Looking for bulk purchase? Cannot Find the Fan Size? Air Volume or the area of square feet you need to cover? | |||||||||

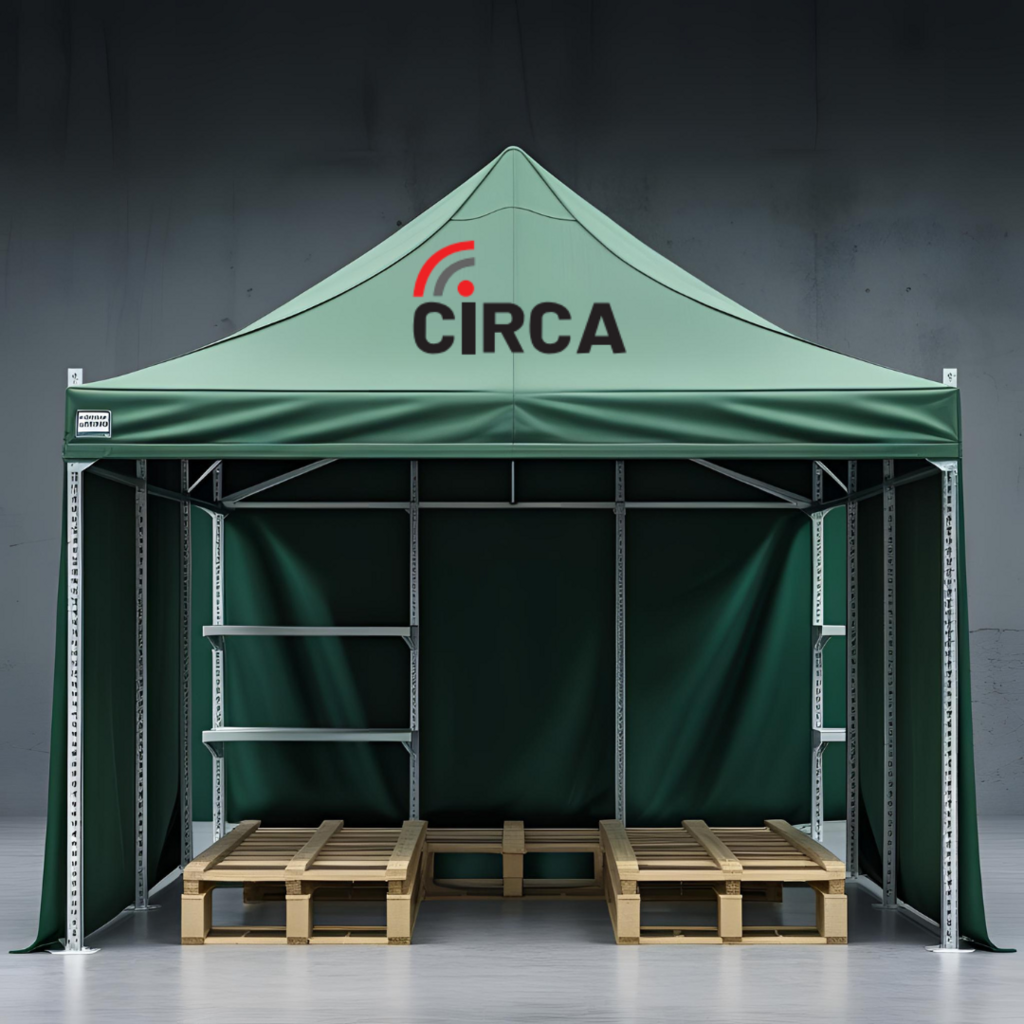

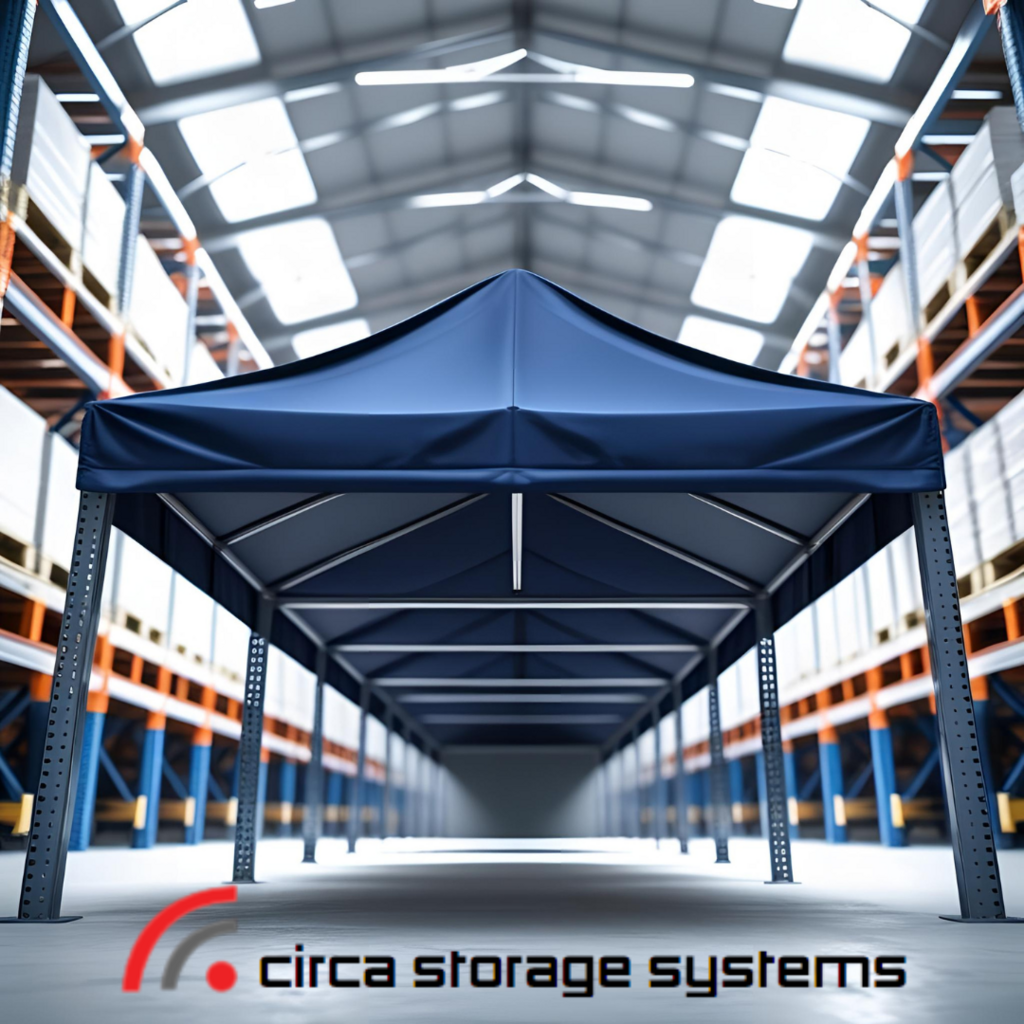

Events, Retail, Storage Temporary & Heavy Duty for Temporary, Semi-Permanent, Permanent Canopy System

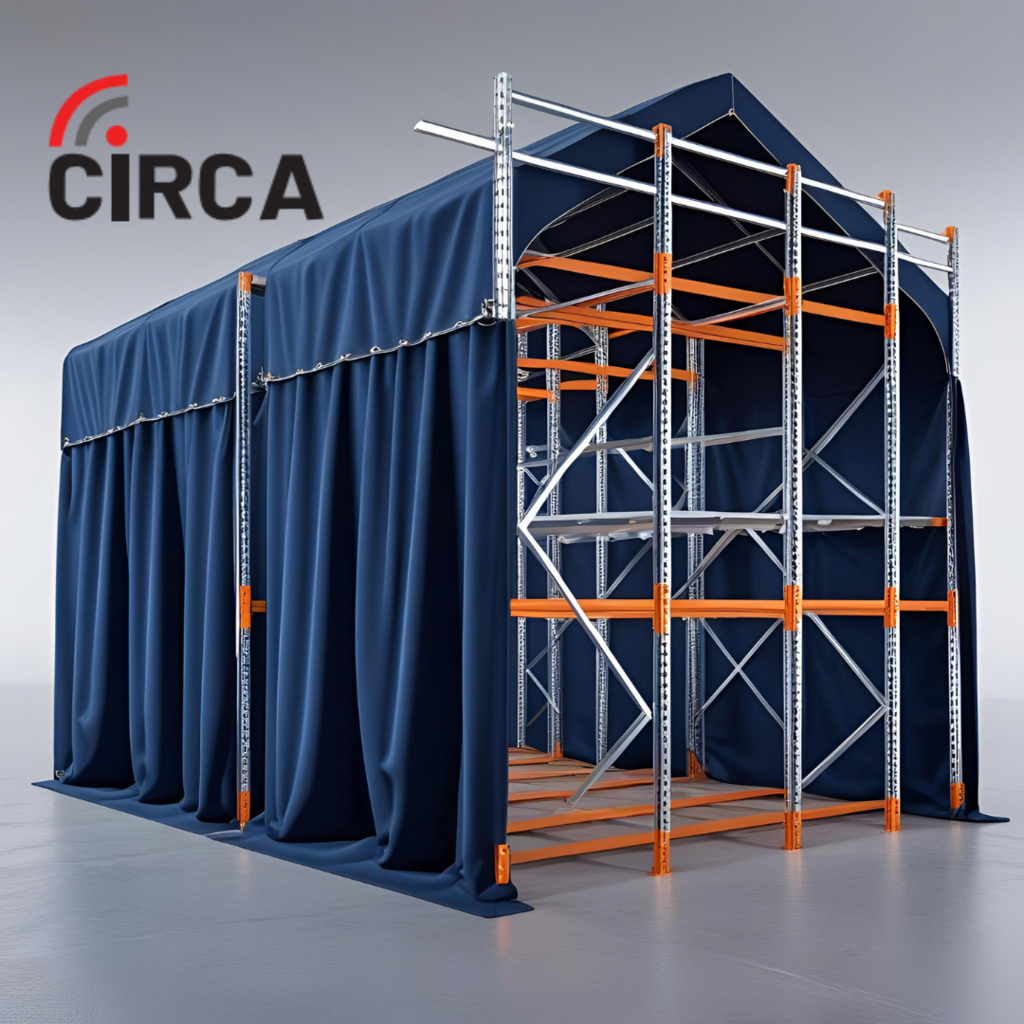

Outdoor Temporary, Semi-Permanent & Permanent Storage Structures Customized Solutions with All Weather Canvas Systems
Outdoor Weather Resistant Parts, Accessories, Equipments & Systems
Reach our customer service to get our direct contact & representatives in the following countries that we cater direct;
We cater for our own team installation, just reach out to our sales team and book any installation service upon your products or parts arrival.
Please reach out to us at +6018 917 9957
Malaysia Singapore Thailand Vietnam
Service Centre Locations
Whatsapp +6018 917 9957
Line:
Zalo:
Monday- Friday 8.30am to 17.30pm
Saturday Sunday & Public Holiday Closed
All parts purchased directly from our inventory are automatically covered by our warranty and product liability. All warranty matters will be managed directly by Circa Storage or an authorized representative.
Terms apply. Our general limited warranty covers our storage systems for up to 120 months and our ventilation products for up to 36 months. Repairs are covered within a 6-12 month timeframe. Please consult with our local sales team for more information.
We provide parts availability for up to 10 years from the year of purchase, exclusively for business-to-business (B2B) customers under our account management agreement.
Since 2018, we have been supporting our customers from our HQ and Parts Distribution Center in Malaysia, serving East Malaysia, Brunei, Singapore, Thailand, and Ho Chi Minh City, Vietnam.
